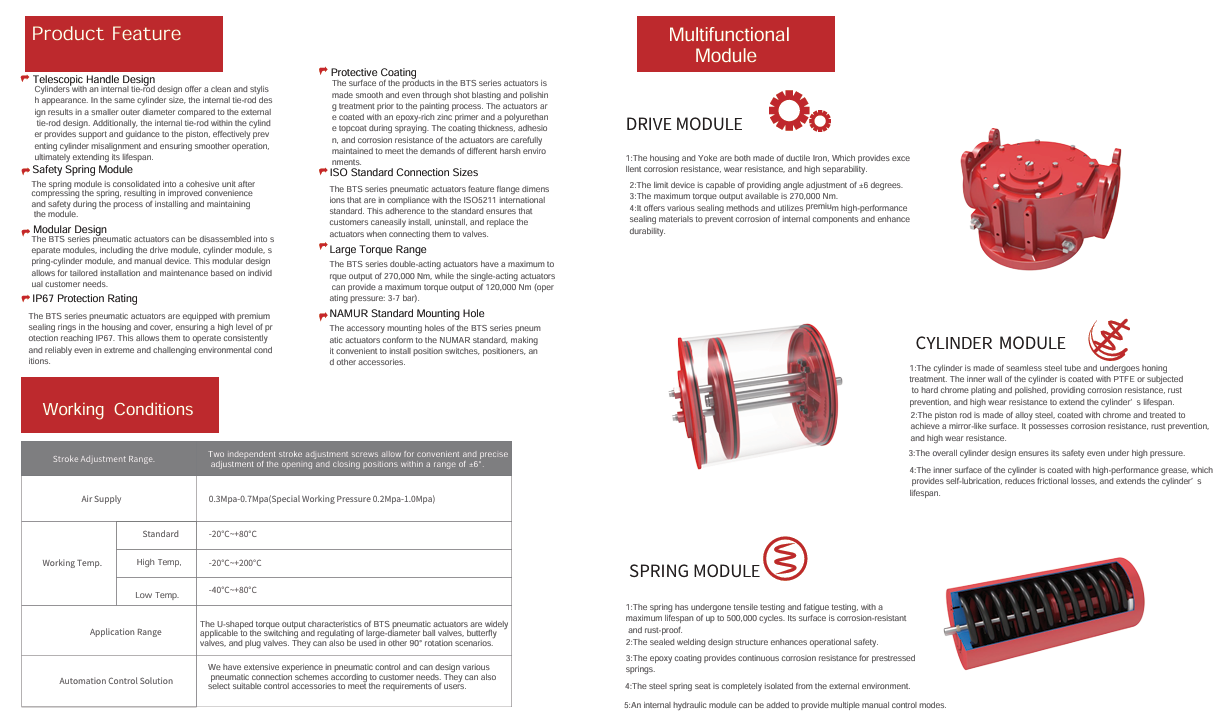

PRODUCT FEATURES

Telescopic Handle Design

 Cylinders with an internal tie-rod design offer a clean and stylis h appearance. In the same cylinder size, the internal tie-rod des ign results in a smaller outer diameter compared to the external tie-rod design. Additionally, the internal tie-rod within the cylind er provides support and guidance to the piston, effectively prev enting cylinder misalignment and ensuring smoother operation, ultimately extending its lifespan

Safety Spring Module

 The spring module is consolidated into a cohesive unit after compressing the spring, resulting in improved convenience and safety during the process of installing and maintaining the module.

 Modular Design

 The BTS series pneumatic actuators can be disassembled into s eparate modules, including the drive module, cylinder module, s pring-cylinder module, and manual device. This modular design allows for tailored installation and maintenance based on individ ual customer needs.

IP67 Protection Rating

 The BTS series pneumatic actuators are equipped with premium sealing rings in the housing and cover, ensuring a high level of pr otection reaching IP67. This allows them to operate consistently and reliably even in extreme and challenging environmental cond itions.

Protective Coating

 The surface of the products in the BTS series actuators is made smooth and even through shot blasting and polishin g treatment prior to the painting process. The actuators ar e coated with an epoxy-rich zinc primer and a polyurethan e topcoat during spraying. The coating thickness, adhesio n, and corrosion resistance of the actuators are carefully maintained to meet the demands of different harsh enviro nments.

ISO Standard Connection Sizes

 The BTS series pneumatic actuators feature flange dimens ions that are in compliance with the ISO5211 international standard. This adherence to the standard ensures that customers caneasily install, uninstall, and replace the actuators when connecting them to valves.

Large Torque Range

 The BTS series double-acting actuators have a maximum to rque output of 270,000 Nm, while the single-acting actuators can provide a maximum torque output of 120,000 Nm (oper ating pressure: 3-7 bar). NAMUR Standard Mounting Hole The accessory mounting holes of the BTS series pneum atic actuators conform to the NUMAR standard, making it convenient to install position switches, positioners, an d other accessories.
